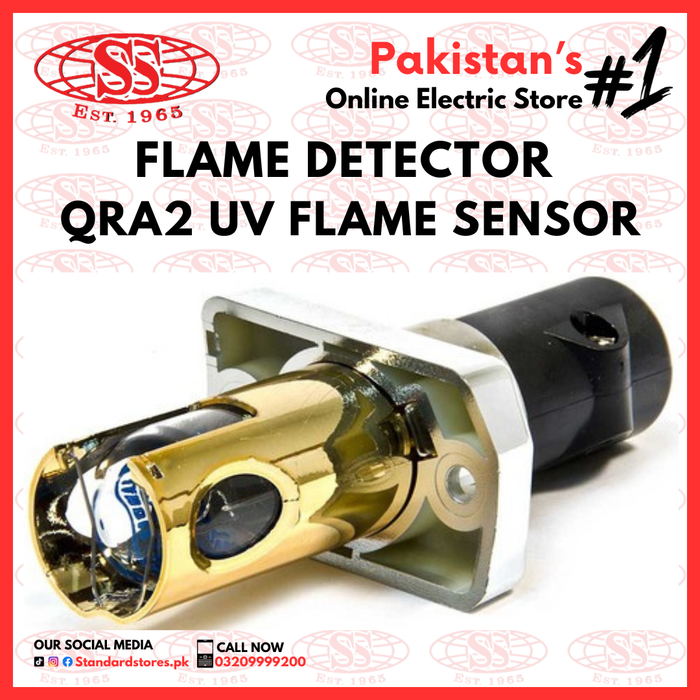

Boiler flame sensor - Burner Sensor- UV Flame Sensor QRA2
- Order Processing Time: Within 24hrs
- Ships In: 3-5 Working Days
- Courier Service: Sonic Trax / Leopard
- Return: Return unused items within 7 days
- Quality as Promised: Trusted Since 1965, quality and customer satisfaction have been our commitment.
Application
The flame detectors are used for the supervision of gas flames, yellow- or blue-burning oil flames and for ignition spark proving.
Function
With this type of flame supervision, the UV radiation emitted by gas or oil flames is used to generate the flame signal.
The radiation detector consists of a UV-sensitive cell with 2 electrodes, which ignite when illuminated with radiation in the 190...270 nm range of the spectrum, thereby triggering a current in the flame detector circuit.
The UV cell does not respond to glowing firebrick in the combustion chamber, daylight or light from the boiler room illumination.
Average life of UV cell
Approximately 10,000 hours at maximum 50 °C, higher ambient temperatures reduce considerably the cell's life.
Perm. combustion chamber pressure: max. 50 mbar
Degree of protection: IP 40
Mounting position: optional
Weight: approx. 60 g
Ignition cable: 2 x 0.75 mm²; 5.1 mm dia.
Temperature range: -20...+60 °C
Humidity: < 95 % r.h.
