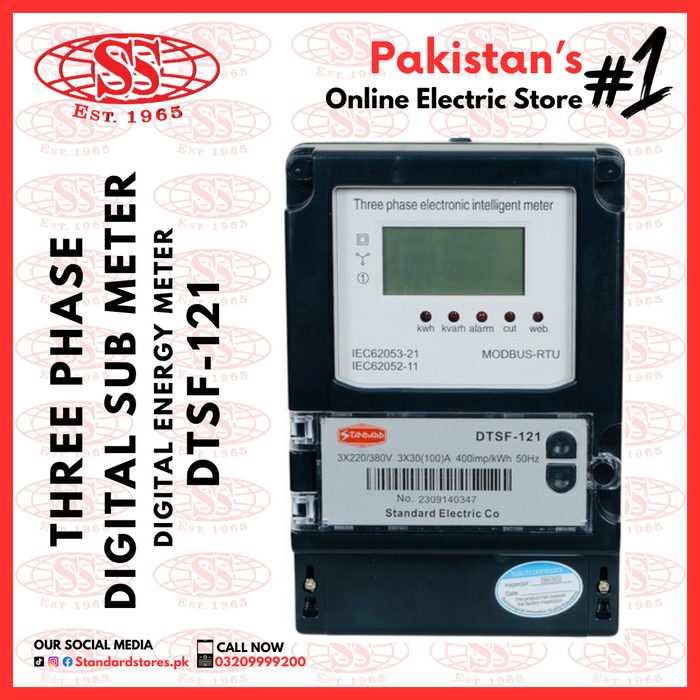

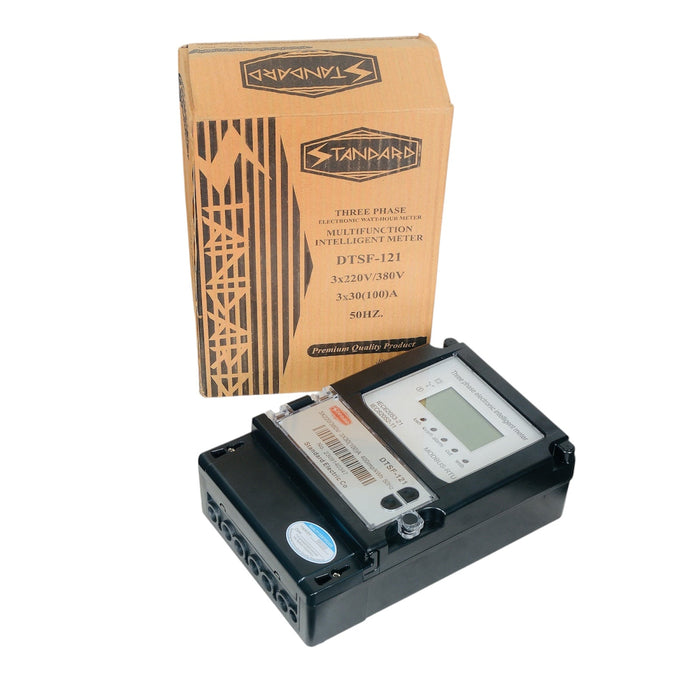

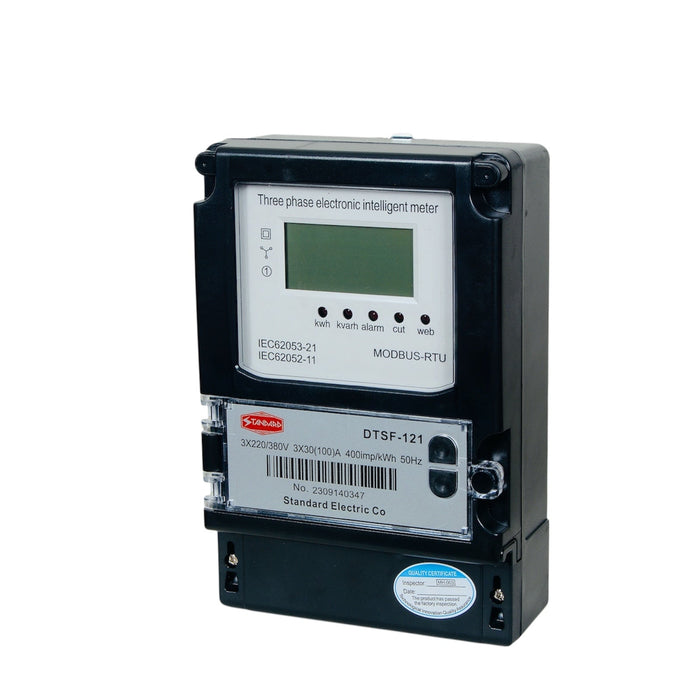

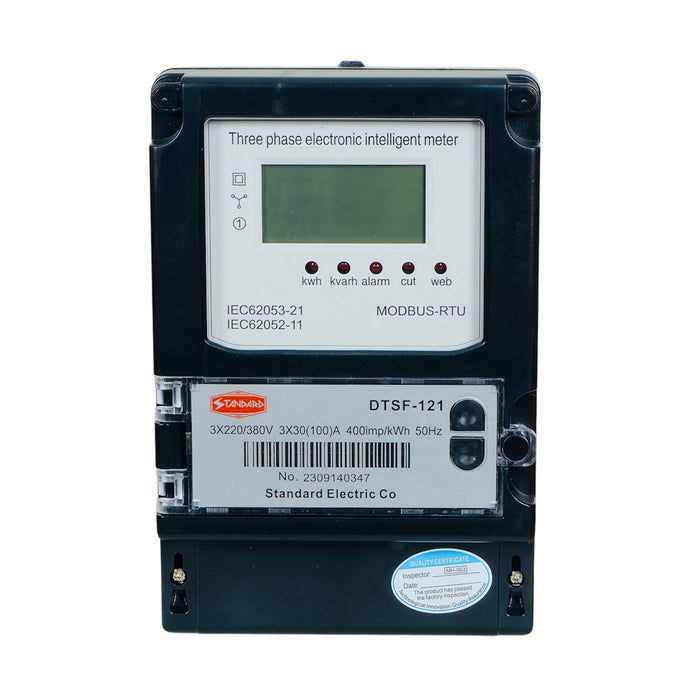

3 Phase Digital Energy Meter 3 Phase Digital Sub Meter kwh Meter
Sale
Original price
Rs.18,500.00
Original price
Rs.18,500.00
-
Original price
Rs.18,500.00
Original price
Rs.18,500.00
Current price
Rs.15,000.00
Rs.15,000.00
-
Rs.15,000.00
Current price
Rs.15,000.00
- Order Processing Time: Within 24hrs
- Ships In: 3-5 Working Days
- Courier Service: Sonic Trax / Leopard
- Return: Return unused items within 7 days
- Quality as Promised: Trusted Since 1965, quality and customer satisfaction have been our commitment.
Features
Accuracy Class: Class1;Class 2
Measuring Energy Range: 1.5(6),3(6),5(30)/10(60)/20(100) Phase Three Phase
Place of Origin: China
Model Number: DTS-121LY
Brand Name: Standard Electric
Display Type: Digital
Operating Temperature: -30 ~55℃
Output Voltage: 3x220/380V
Display: 7digits LCD Type digital meter
Rated Frequency: 50 Or60 Hz
Standard: IEC62053-21,IEC62052-11
Starting Current: (A) 0.01,0.02,0.04,0.08 Features High accuracy
Package: Foam box with master carton 16pcs/ctn
|
Reference Voltage
|
3X220/380V
|
|
Working Voltage Range
|
Provisional voltage range:90%Un~110%Un
Expending voltage range :80%Un~115%Un
|
|
Current
|
CT type: 3x30(100)A
Direct type:3X30(100) A
|
|
Accuracy Level
|
Active Class 1.0
Reactive class 2.0
|
|
Operating Temperature
|
Regulated temperature :-25~+60c
Limit temperature:-40c~+70c
|
|
Relative Humidity
|
≤95(no condensation
|
|
Frequency
|
(50±2.5)Hz/(60±2.5)Hz
|
|
Static Power Consumption
|
<1.5W, 10VA
|
